| Machine Name: | High Frequency Welded Pipe Mill 300x300x16mm High Frequency Welded Pipe Mill Galvanized Steel Square | Product: | Square Pipe |
|---|---|---|---|
| Feature: | PLC Control | Material: | Galvanized Steel |
| Other Pipe: | Only Square Pipe | Max Size: | 300x300mm |
| Thickness: | 16mm | Length: | 6-12m |
| Rollers: | Include | Model: | F300X300 |
| Key Words: | High Frequency Welded Pipe Mill | ||
| Highlight: | 300x300x16mm high frequency welded pipe mill,galvanized high frequency welded pipe mill,plc control high frequency tube mill |
||
Machine General Introduction

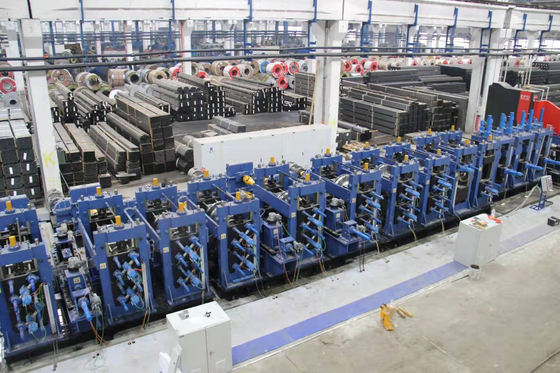

F300x300 Auto high frequency welded pipe production line is mainly to produce the square pipe size 100x100-300x300mm,rectangular pipe 100x150-100x300mm,thickness is from 5-16mm. This line can produce same size round pipe through change stand and roller .This production line each unit use the most advanced technology, innovative design, full control with PLC control, advanced technology, convenient operation and maintenance, and reached the international level.
|
(1)Material Specifications: |
|
|
Standard |
Internatioanl standard tube mill machine |
|
Material |
galvanized steel |
|
Mechanical properties |
σb≤520Mpa,σs≤365MPa |
|
Strip Width |
400-1200mm |
|
Strip Thickness: |
5-16mm |
|
Inner Diameter of Coils |
Φ508mm |
|
Outer Diameter of Coils |
Φ1300～φ2000mm |
|
Coil Weight |
≤25T |
|
(2)Pipe Specification |
|
|
Pipe Diameter |
Square pipe:100x100-300x300mm |
|
Length |
6-12m |
|
Pipe-cutting Precision |
0-6mm |
|
Forming Speed |
max 100m/min for 1 mm thickness |
|
(3)The buyer should self-supply |
|
|
Work shop |
95x12m, H＞5m(crane to ground) |
|
Power |
Approx.2500KW 380V/60Hz/3phases |
|
Circulation Cooling Water(whole system) |
Flow:30+30 CBM |
|
Compressed Air |
Flow:5m3/min |
|
Cable |
All cable outside of my machine, you buy after machine fix location. |
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
this automatic tube mill is been arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
