| Production Name: | Large Carbon Steel Pipe Line Diameter 325mm - 530mm Speed 25m / Min Welded Tube Mill Machine | Pipe Diameter: | 325mm-530mm |
|---|---|---|---|
| Product Speed: | Max 25m/min | Material: | Carbon Steel,low Alloy Steel |
| Cutting Saw: | Friction Saw Cutting | Pipe Thickness: | 4.0-9.0mm |
| Voltage: | 380V | Key Word: | Speed 25m / Min Welded Tube Mill Machine |
| Highlight: | 25m / Min Carbon Steel Tube Mill,Welded Carbon Steel Tube Mill,25m / Min Welded Pipe Mill |
||

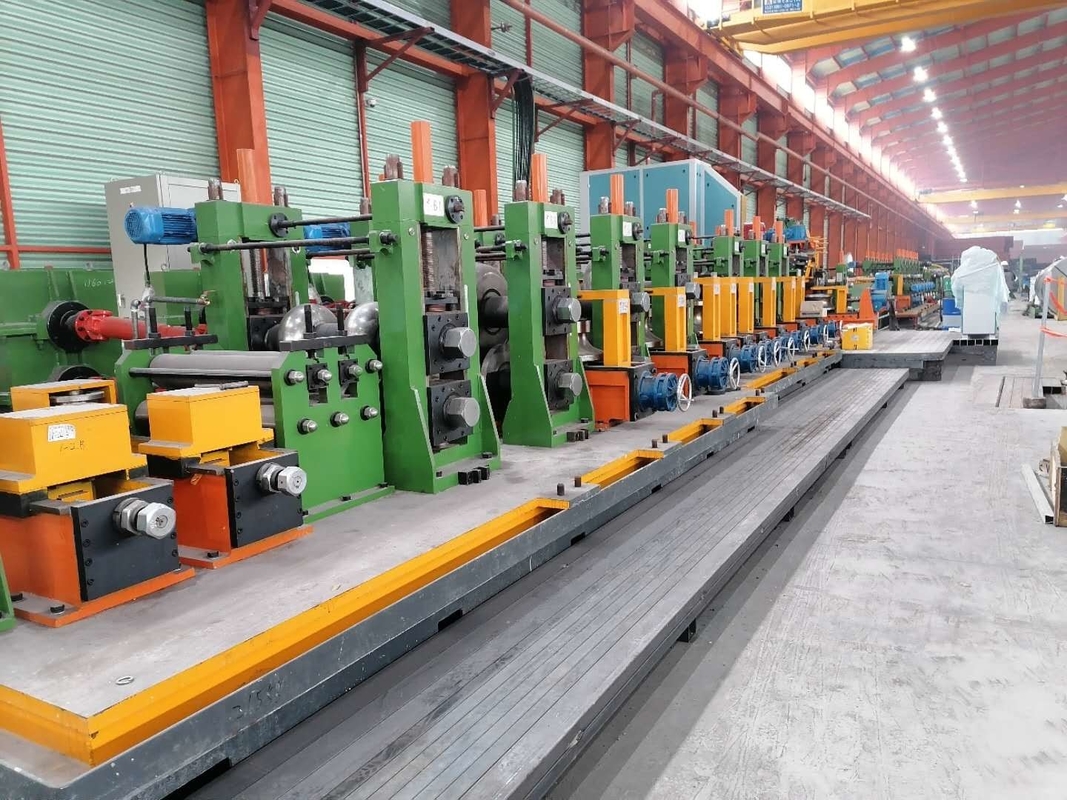

HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diaφ325-530mm, thickness 4-9mm).
Use FFX molding: On this equipment, the most economical and reasonable molding process is used to continuously and smoothly bend into a seamed tube. Due to the special design of the entire roll structure and its adjustment, it can adapt to the forming of all product sizes and specifications without the need to replace rolls.
The closed-hole type frame part is a three-frame four-high rolling mill, and the rolls need to be replaced according to different product outer diameters. In order to facilitate quick change of specifications, the closed-hole type frame frame is specially designed and installed in a special replacement frame. The connection and separation with the base and the driving part are driven by hydraulic pressure, and the replacement can be completed in tens of minutes.
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| shaft material | 40Cr |
| round pipe diameter | 19-76mm |
| Round pipe thickness | 1.5-3.0mm |
| square pipe size | 15×15-60×60mm |
| square pipe thickness |
1.5-2.0mm
|
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !
