| Production Name: | Adjustable Size 114-219mm Steel Pipe Production Line Max 120mM/Min Speed Color Green Square Tube Mill | Application: | Natural Gas,Drain Pipe,3 NB Tube Production |
|---|---|---|---|
| Voltage: | 380V/220V | Pipe Diameter: | 114-219mm |
| Thickness: | 3-9mm | Speed: | 60-120M/Min |
| Key Words: | Color Green Square Tube Mill | ||
| Highlight: | Adjustable Size Steel Pipe Production Line,Steel Pipe Production Line Max 120mM/Min,Adjustable Size Steel tube Production Line |
||

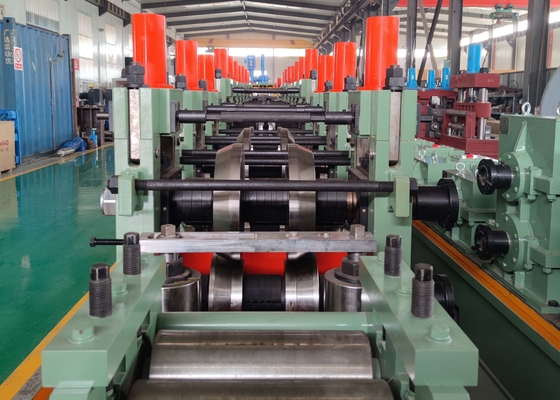

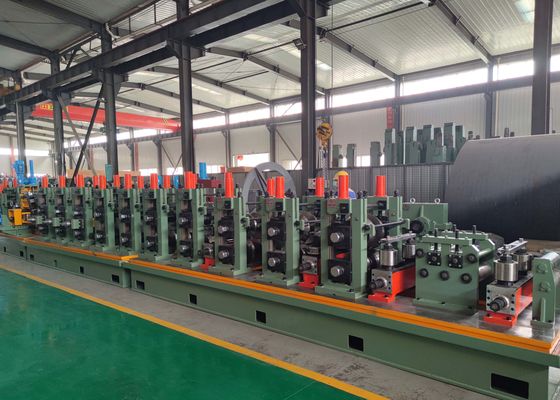

Adjustable Size 114-219mm Steel Square Tube Mill Max 120mM/Min Speed is designed to produce round pipe (Diaφ114-219mm, thickness 3-9mm). Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
●Improve operational performance and production performance;
●Improve the environment and security of the operations;
●Improve product stability;
●Improve product productivity;
●Reduce roll costs.
Material Specifications:
Conforming to the YB189-64 standard
(1)Material: Low carbon steel and low alloy constructional steel
(2)Mechanical properties: σb≤520Mpa,σs≤340MPa
(3)Strip Width: 357～688mm
(4)Strip Thickness: 1.5～6.0mm
(5)Steel strip coil: Inner Diameter of Coils:φ508～φ610mm
Outer Diameter of Coils:φ1000～φ2000mm
(6)Coil Weight: ≤12T
Main specifications of welding pipe products:
(1)Pipe Size: Round: φ114～φ219mm
(2)Wall Thickness of Pipes: 3～9mm
(3)Fixed Cutting length: 8～12m
(4)Pipe-cutting Precision: ±1.5mm
Forming Speed : 20～50m/min
Power, Water & Air Supply
| Power | Power Volume of the Line | Approx.600KW |
| Power Source | 380V/60Hz/3phases | |
| Circulation Cooling Water | Flow | 20T/h～30 T/h |
| Pool Volume | 30m3 | |
| Compressed Air | Flow | 5m3/min |
| Pressure | 5～11kg/ cm2 |
workshop require:
| 6m wide, 70m long, at least 5m high from Ceiling Rails to Ground. |
●Instruction Manual (provided at the time of a month before delivery time)
●Inspection Certificate (provided at the delivery time)
●Loading Order (Provided at the delivery time)
●Layout Drawing (provided at the time of a month before delivery time)
●Ground Base Drawing (provided at the time of a month before delivery time)
●Electrical Principle Diagram
●Overall Assembly Drawing of every unit of the line
●Part Diagram of Vulnerable Parts
