Product Details:
Payment & Shipping Terms:
|
| Spec: | Custom | Welding Type: | High Frequency Welding |
|---|---|---|---|
| Warranty Period: | 1 Year | Machine Name: | Square Pipe Automatic Tube Mill |
| Power Supply: | 380V 50Hz | Cutting Method: | Cold Saw |
| Cutting Type: | Flying Saw Cutting | Tube Diameter: | Customized |
| Key Word: | Automatic Steel Tube Making Machine | Pipe Shape: | Square Rectangular And Profile Pipe |
| Cutting Length: | 4 - 12 M | Pipe Diamete: | 20x20-80x80mm |
| Forming Speed: | High Speed | ||
| Highlight: | ERW Steel Pipe Automatic Tube Mill,High Precision Tube Mill,High Precision Automatic Tube Mill |
||
Details

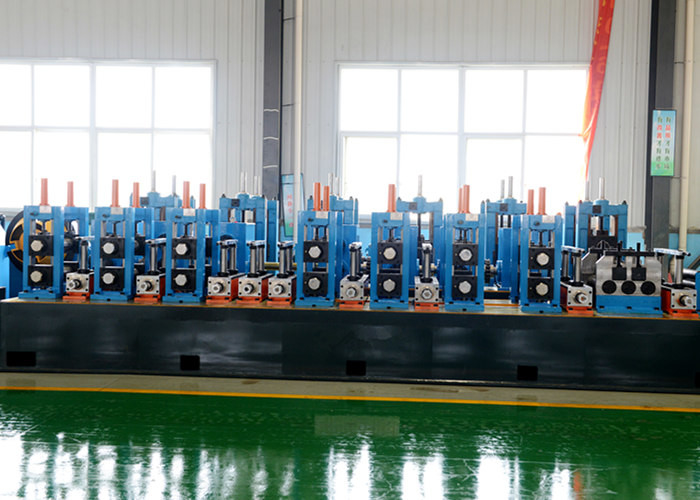

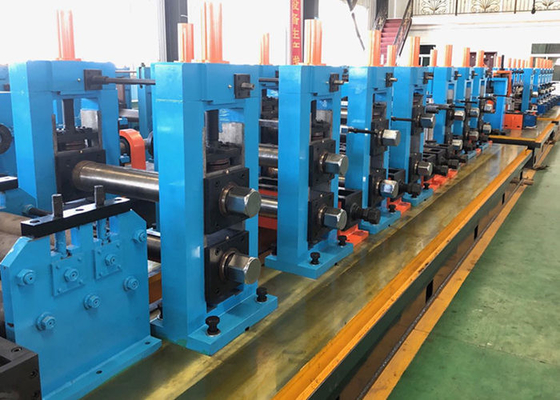

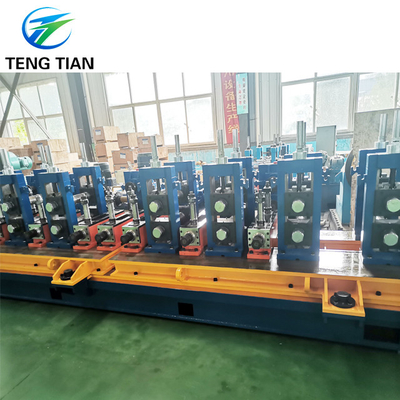

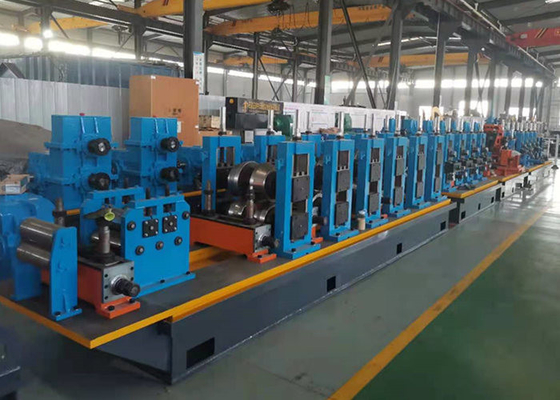

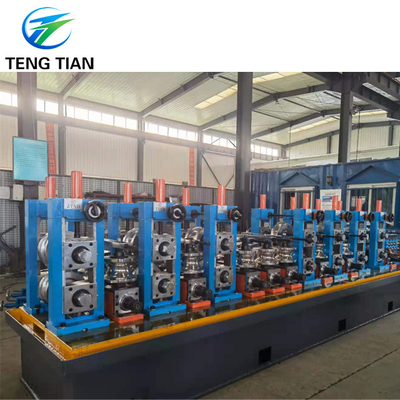

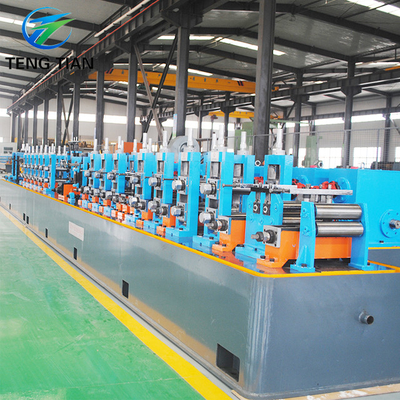

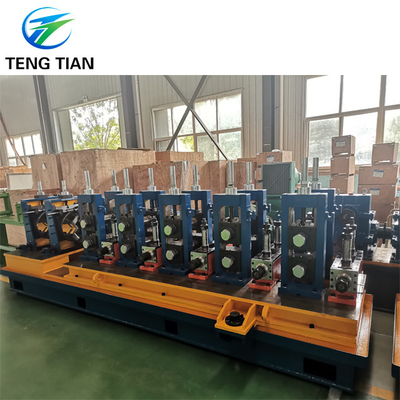

HG89 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Square pipe size: 20X20-75X75mm
Rectangular pipe size:20X25-50X100mm
Pipe thickness: 1.0-4.0mm
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
| Model | Diameter Range | Pipe Thickness | Molding speed(m/min) | Motor Power(KW) | Mechanical area (m³) |
| HG20 | 8-20MM | 0.3-1MM | 30-120 | 55 | 7×50 |
| HG32 | 12-32MM | 0.3-2.0MM | 30-120 | 75 | 7×50 |
| HG50 | 16-50MM | 0.8-2.5MM | 30-110 | 110 | 7×60 |
| HG60 | 20-60MM | 0.8-3MM | 30-100 | 132 | 7×65 |
| HG76 | 12-76MM | 1-3MM | 30-100 | 320 | 8×80 |
| HG89 | 32-89MM | 1-4MM | 30-80 | 350 | 8×80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 | 400 | 10×100 |
| HG165 | 60-165MM | 3-7MM | 30-50 | 600 | 10×110 |
| HG219 | 114-219MM | 4-8MM | 20-40 | 800 | 12×150 |
| HG273 | 114-273MM | 4-10MM | 15-30 | 1000 | 18×160 |
| HG325 | 165-325MM | 4-12MM | 10-30 | 1200 | 18×180 |
| HG426 | 165-426MM | 4-16MM | 8-25 | 1400 | 18×180 |
| HG508 | 219-508MM | 4-20MM | 8-20 | 2000 | 21×180 |
About us
New Full Automation
The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.
Qualification
Our Services
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
Our customers
Our company specializes in the production of pipe mill, slitting line,cold roll forming,stainless steel pipe mill and other equipment,On the basis of the introduction of the advanced technology of Japan, the company is innovative and the machine are manufactured in strict accordance with the standard of Japan.Advanced configuration,stable quality,excellent performance,with excellent market visibility and reputation,our machine has reached the world's leading level.
Exhibition
Packing and shipping
Our equipment has been exported to dozens of countries and regions such as Egypt, Greece,South Korea,Vietnam,Indonesia,South Africa,etc.,and received favorable comments from domestic and foreign customers.
