Product Details:
Payment & Shipping Terms:
|
| Product Name: | ERW Pipe Mill HF Welding Run Out Table Adjustable Size For Energy Supply Pipe | Pipe Size Range: | Square Tube: 200-426mm |
|---|---|---|---|
| Cutting Type: | Flying Saw Cutting | Pipe Material: | Carbon Steel, Stainless Steel, Galvanized Steel |
| Cutting System: | Flying Saw Cutting | Warranty: | 1 Year, One Year, 12 Months |
| Roller Materoal: | Cr12/SKD11 | Key Words: | ERW Pipe Mill HF Welding |
| Highlight: | HF Welding ERW Pipe Mill,High Productivity ERW Pipe Mill,Adjustable Size ERW Pipe Mill |
||

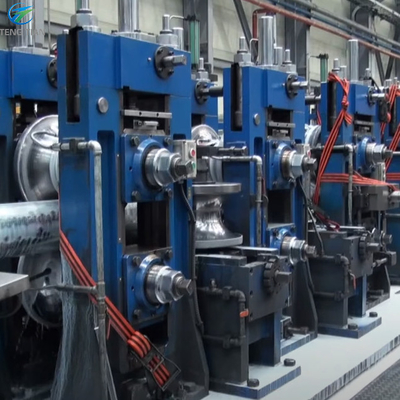

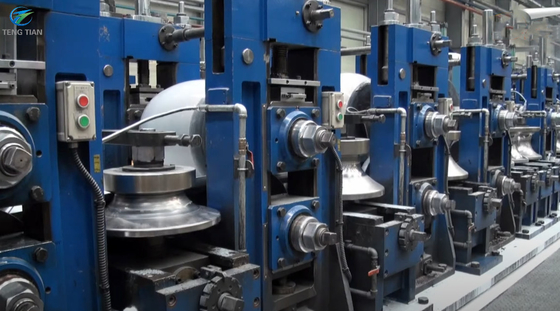

High Productivity ERW Pipe Mill HF Welding Run Out Table Adjustable Size
Strip Steel
It must be require abide by YB189-64 standard. Low carbon steel, low alloy steel: δb≤520Mpa δs≤340Mpa

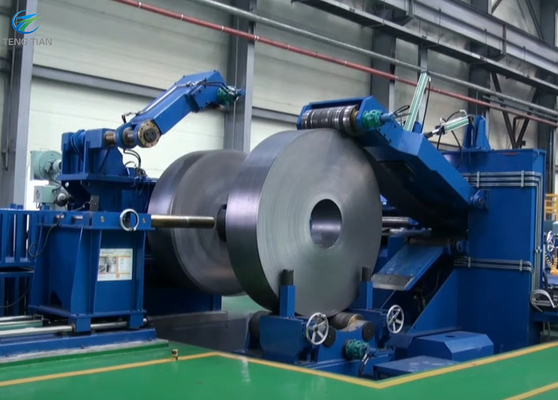

strip coil
inner diameter Φ200-426mm
including accessory diameter Φ500-Φ630mm
out diameter Φ1000-1500mm
coil weight ≤6Tons
machinery & electronics:about 530KW.(only reference for you)
high-frequency equipment 600KW
pressure air capability:0.4-0.6Mpa
cooling liquid capability:100ton/h-120ton/h
water quantity for high-frequency equipment:150－250(ton/h) circle water
| item | value |
| Applicable Industries | Hotels, Manufacturing Plant, Construction Works, Energy & Mining |
| Showroom Location | United States, Italy, Pakistan, India, Russia, Thailand, Tajikistan |
| Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of Core Components | 1 Year |
| Core Components | Engine, Gearbox, Motor, Gear |
| Condition | New |
| Type | Pipe Production Line |
| Pipe Material | Carbon steel |
| Application | Energy Supply Pipe |
| Production Capacity | 20-30/min |
| Place of Origin | Hebei, China |
| Brand Name | Tengtian |
