Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Frequency Welded Pipe Mill Big Size Weld Hrc High Frequency Welded Pipe Mill Machine | Material: | HRC,CRC,Galvanised Steel |
|---|---|---|---|
| Tube Size: | 80x80-200x200 Mm | Tube Thickness: | 3.0-8.0mm |
| Forming Type: | FFX Forming | Pipe Shape: | Square,rectangular,LTZ |
| Roller Materoal: | Cr12/SKD11 | Key Words: | High Frequency Welded Pipe Mill |
| Highlight: | hrc high frequency welded pipe mill,weld high frequency welded pipe mill,rectangular high frequency welding tube mill |
||

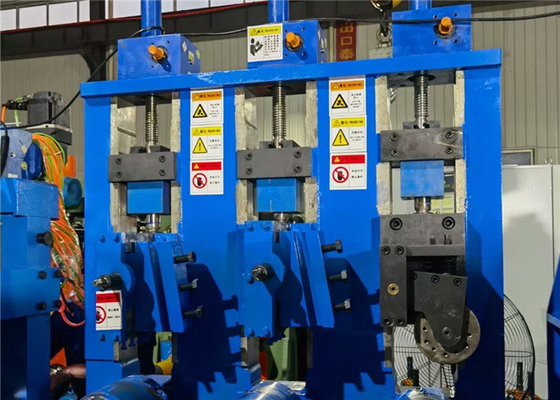

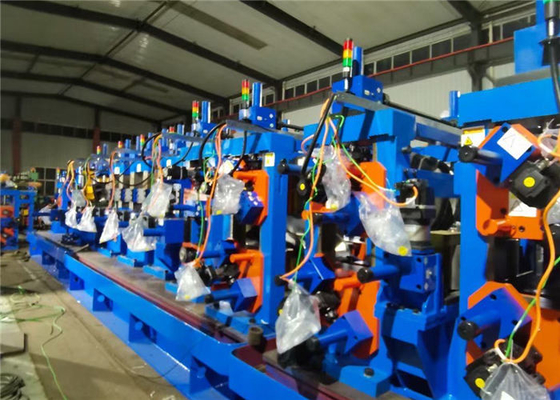

The weld pipe machine high frequency welded pipe mill designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.the tube mill machine with different type,include normal tube mill machine, full automatic type,semi-automatic type,high precision tube mill machine can meet customer different require.this carbon steel tube mill machine can product from 80x80mm to 200x200mm with thickness from 3.0-8.0mm,also can product square tube and rectangular tube, we has different model tube mill machine,also can design according to customer different require
After the machine arrives at the buyer,technical service person will go to buyer factory provide guidance on operation,debugging and maintenance the machine,responsible for technical training for equipment operation and maintenance personnel of the buyer.
whole line warranty one year
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
