| Production Name: | Large Carbon Steel Pipe Line Diameter 325mm - 530mm Speed 25m / Min Welded Tube Mill Machine | Pipe Diameter: | 325mm-530mm |
|---|---|---|---|
| Product Speed: | Max 25m/min | Material: | Carbon Steel,stainless Steel,low Alloy Steel |
| Cutting Saw: | Friction Saw Cutting | Pipe Thickness: | 4.0-9.0mm |
| Voltage: | 380V | Key Word: | Speed 25m / Min Welded Tube Mill Machine |
| Highlight: | diameter 325mm carbon steel tube mill,large carbon steel tube mill,diameter 530mm welded tube mill |
||

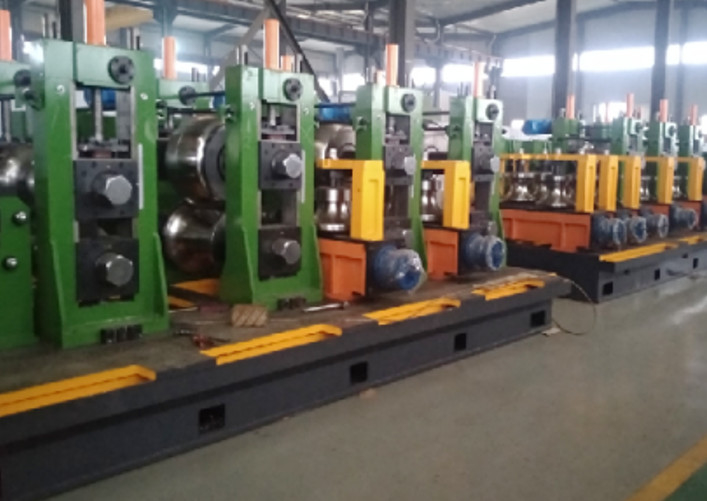

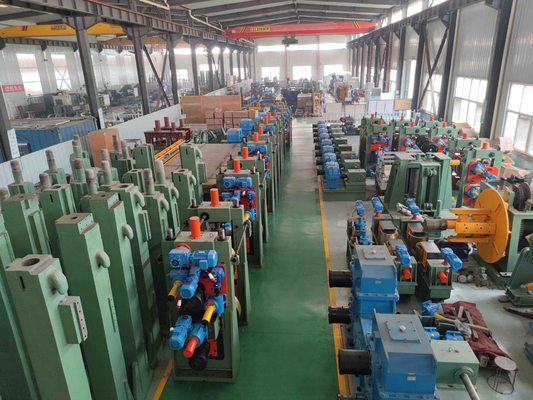

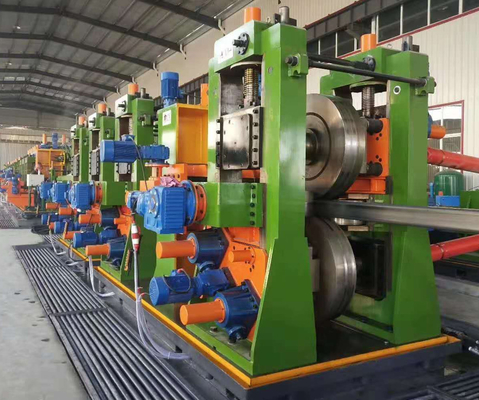

HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diaφ325-530mm, thickness 4-9mm).
Use FFX molding: On this equipment, the most economical and reasonable molding process is used to continuously and smoothly bend into a seamed tube. Due to the special design of the entire roll structure and its adjustment, it can adapt to the forming of all product sizes and specifications without the need to replace rolls.
The closed-hole type frame part is a three-frame four-high rolling mill, and the rolls need to be replaced according to different product outer diameters. In order to facilitate quick change of specifications, the closed-hole type frame frame is specially designed and installed in a special replacement frame. The connection and separation with the base and the driving part are driven by hydraulic pressure, and the replacement can be completed in tens of minutes.
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| shaft material | 40Cr |
| round pipe diameter | 19-76mm |
| Round pipe thickness | 1.5-3.0mm |
| square pipe size | 15×15-60×60mm |
| square pipe thickness |
1.5-2.0mm
|
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !
1) Factory will send 1-2technical engineers for installation and testing operation
2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.
3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector
4) Buyer Preparation Notes
