| Product Name: | Spiral Welding Machine Pipe Mill Q235B Front Pendulum X Ray For Oil Pipeline | Material: | Q235B |
|---|---|---|---|
| Welding Method: | Argon Arc Welding | Pipe Thickness: | 4.0-16.0mm |
| Cutting Length: | 6-12 M | Keyword: | Spiral Welding Machine Pipe Mill |
| Highlight: | Spiral Welding Machine Pipe Mill,Q235B Spiral Welding Machine Pipe Mill,Spiral steel pipe making machine |
||

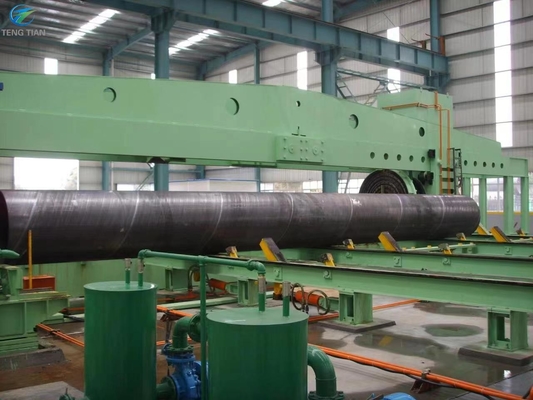

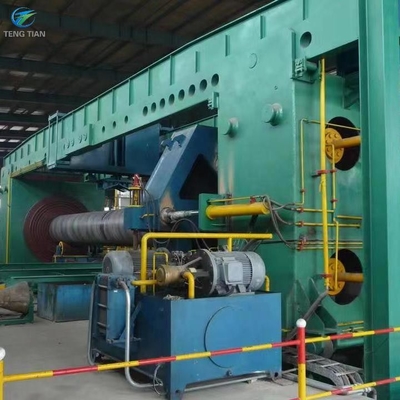

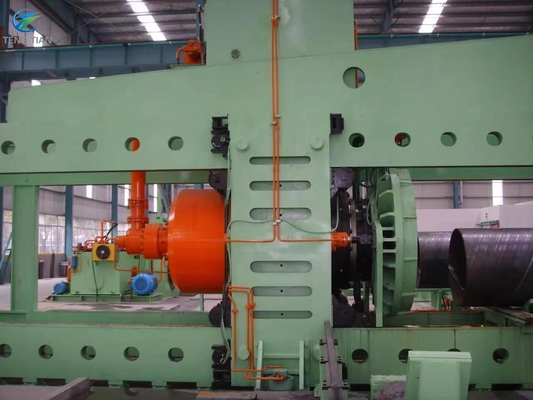

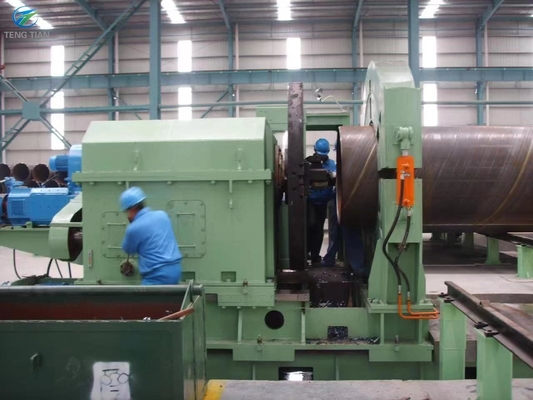

Spiral Welding Machine Pipe Mill Q235B Front Pendulum X Ray For Oil Pipeline
Main Parameters
| Coil Materials | ||
| OD | ø190 - ø 1220 | mm |
| ID | ø600 - ø760 | mm |
| Grade | Q235B,Q355B | |
| Wall thickness | 6-14 | mm |
| Width | 500 - 1500 | mm |
| Weight | ≤25 | Tons |
| Output Pipe | ||
| Diameter | ø190 - ø1220 | mm |
| Wall thickness | 6-14 | mm |
| Length | 8 - 12 | M |
| Weight | Max. 25 | Tons |
| Spiral distance | Max. 2200 | mm |
| Standard | GB/T9711 GB/T5037 | |
| Production Line | ||
| Working style | front pendulum + discontinuous + centralized positioning | |
| Feeding | Left/right(as order) | |
| Forming | Three-roll bending, external control sizing | |
| Forming angle | 40°～79° | |
| Blanking | Pendulum roll | |
| Feeding speed | 0.6 -3.0 m/min | |
| Welding speed | 0.5 - 2.8 m/min | |
| Welder | USA Lincoln DC1500 | |
| Welding | Single Out+In auto SAW | |
| Productivity |
Approx. 100/8(tons/hour)
|
|
| Capacity | Approx. 550 kw(include welder) | |
| Engine | ||
| Voltage | 220 / 380V, 50HZ | |
| Air compressor | 0.6Mpa 0.9m³/min | |
| Workshop | ||
| Ceiling rails | 1x 30/10T, 1x10T | |
| Lifting height | 7m+ | |
| Area(main machine) | 36x24 m | |
