| Product Name: | High Efficiency Carbon Steel Material Pipe Making Machinery | Forming Method: | Galvanized Carbon Steel 114mm 219mm Square Tube Mill |
|---|---|---|---|
| Welding Type: | Hebei, China (Mainland) | Cutting Saw: | Cold Saw & Friction Saw Cutting |
| Pipe Diameter: | 114-219mm | Pipe Thickness: | 4-8mm |
| Molding Speed: | 20-40m/min | Material: | Carbon Steel |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Key Word: | Carbon Steel Material Pipe Making Machinery |
| Highlight: | Carbon Steel Pipe Making Machinery,Advanced Pipe Making Machinery,High Efficiency Pipe Making Machinery |
||

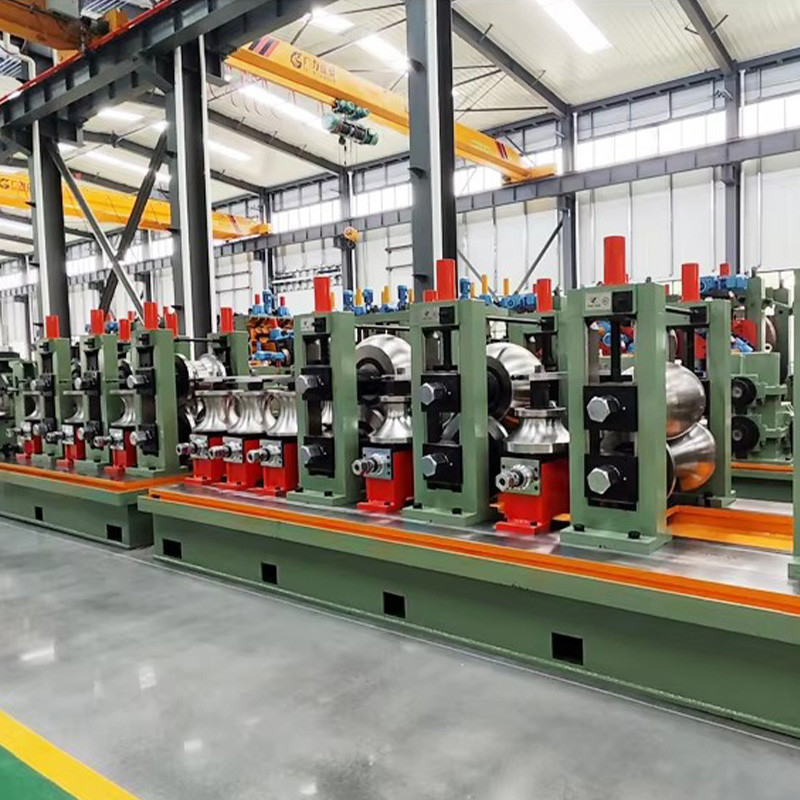

High Efficiency Carbon Steel Material Pipe Making Machinery
| Model Number | HG219 |
| Place of Origin | Hebei, China (Mainland) |
| Molding speed | 20-40m/min |
| Pipe diameter | 114-219mm |
| Pipe Thickness | 4-8mm |
| Voltage | 380V/220V |
| Power | 800KW |
| Certification | ISO 9001,CE,BV |
| Pipe shape | Rectangle,round,square |
| Material of Pipe | Carbon Steel , Stainless Steel and Galvanized Steel |
Galvanized Carbon Steel 114mm 219mm Square Tube Mill is the specifications of the steel belt feeding unit, through the roll bring curled up into a tube billet steel, and then use the high frequency of proximity effect and skin effect make the strip edge instantaneous heating to welding temperature, and under the action of squeezing roller complete welding, then through water cooling, sizing and straightening as required specifications of the steel pipe. The product line in each units on the basis of digesting and absorbing domestic and foreign similar equipment, combined with China's national conditions, innovative design, convenient operation and maintenance, simple. The machine has high machining quality and assembly precision, and can produce electric welded steel pipe with high precision by adopting reasonable roll pass.
Production Process
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
ERW Tube Mill Other Model
| Model | Diameter Range | Pipe Thickness | Molding speed(m/min) | Motor Power(KW) | Mechanical area (m³) |
| HG20 | 8-20MM | 0.3-1MM | 30-120 | 55 | 7×50 |
| HG32 | 12-32MM | 0.3-2.0MM | 30-120 | 75 | 7×50 |
| HG50 | 16-50MM | 0.8-2.5MM | 30-110 | 110 | 7×60 |
| HG60 | 20-60MM | 0.8-3MM | 30-100 | 132 | 7×65 |
| HG76 | 12-76MM | 1-3MM | 30-100 | 320 | 8×80 |
| HG89 | 32-89MM | 1-4MM | 30-80 | 350 | 8×80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 | 400 | 10×100 |
| HG165 | 60-165MM | 3-7MM | 30-50 | 600 | 10×110 |
| HG219 | 114-219MM | 4-8MM | 20-40 | 800 | 12×150 |
| HG273 | 114-273MM | 4-10MM | 15-30 | 1000 | 18×160 |
| HG325 | 165-325MM | 4-12MM | 10-30 | 1200 | 18×180 |
| HG426 | 165-426MM | 4-16MM | 8-25 | 1400 | 18×180 |
| HG508 | 219-508MM | 4-20MM | 8-20 | 2000 |
21×180 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
