Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Efficiency 200x200mm 14.0mm Pipe Making Machinery | Production: | Round Pipe |
|---|---|---|---|
| Feature: | Quick Change | Name: | Tube Mill |
| Other Pipe: | Square Pipe And Rectangular Pipe | Max Size: | 100x100-200x200mm |
| Thickness: | 3.0-14.0mm | Length: | 6-12m |
| Rollers: | Include | Keywords: | 200x200mm MAX14.0mm Pipe Making Machinery |
| Highlight: | 14.0mm Pipe Making Machinery,200x200mm Pipe Making Machinery,High Efficiency Pipe Making Machinery |
||

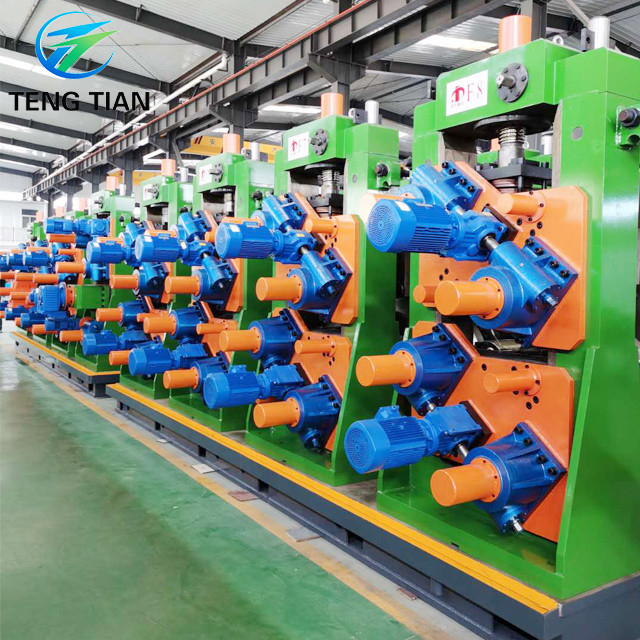

High Efficiency 200x200mm MAX14.0mm Pipe Making Machinery
1.Machine General Introduction
it is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
2.Main Parameters and Specifications:
| (1)Material Specifications: | |
| Standard | Conforming to the YB189-64 standard |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | δs≤345Mpa δb≤610Mpa |
| Strip Width |
270-800mm |
| Strip Thickness: | 3.0-14.0mm |
| Inner Diameter of Coils | φ480～φ570mm |
| Outer Diameter of Coils | φ1000～φ1800mm |
| Coil Weight | ≤18T |
| (2)Pipe Specification | |
| Pipe Diameter |
Square pipe:100x100-200x200mm Same size Rec. pipe Thickness:3.0-14.0mm |
| Length | 6-12m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | 10-50m/min |
| (3)The buyer should self-supply | |
| Work shop | 120x6m, H＞5m(crane to ground) |
| Power | Approx.1212KW 380V/50Hz/3phases |
| Circulation Cooling Water(whole system) |
Flow:20T/h～30 T/h Pool Volume:30m3 |
|
Compressed Air (whole system) |
Flow:5m3/min Pressure: 5-7kg/ cm2 |
| Others | Seller will supply list |
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
