| Product Name: | High Efficiency Customizable Steel Pipe Making Machine | Coild: | Q235 |
|---|---|---|---|
| Diameter: | 219mm(max.) | Thickness: | 6mm |
| Length: | 6-9M | Weight: | 8 Tons |
| Cutter: | Hot Saw | Runout Table: | 18M |
| Key Word: | Customizable Steel Pipe Making Machine | ||
| Highlight: | Customizable steel tube making machine,Customizable steel pipe manufacturing machine,High Efficiency steel tube making machine |
||

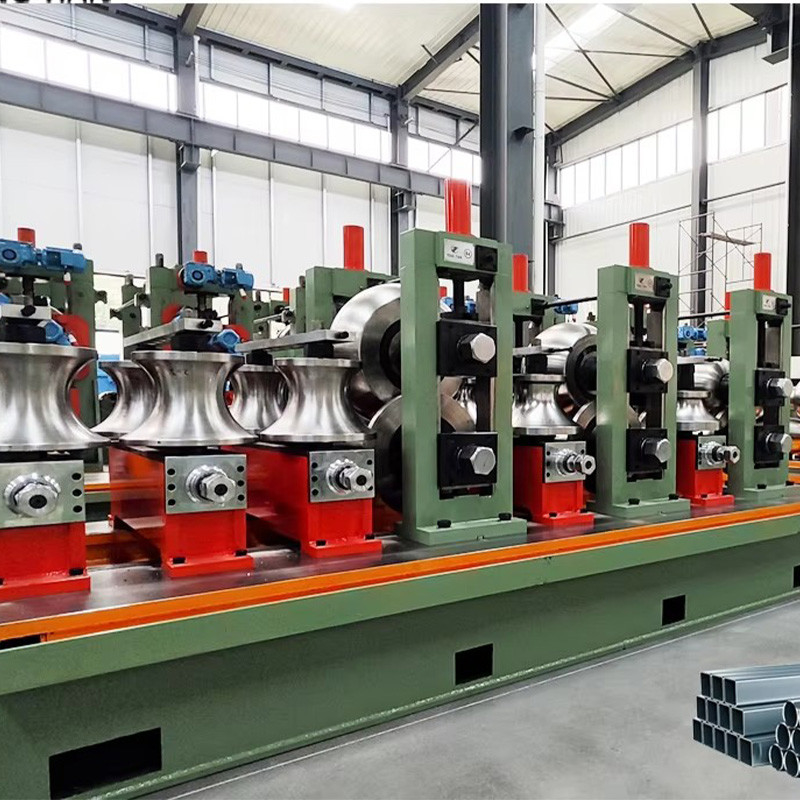

High Efficiency Customizable Steel Pipe Making Machine
It is designed to produce welded steel pipes ,include round pipe , square pipe and rectangle pipe. Adopt roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
| (1)Material Specifications: | |
| Standard | Conforming to the YB189-64 standard |
| Material | Low carbon steel and low alloy steel, Q235 |
| Strip Width | 320-700mm |
| Strip Thickness: | 1.5-6.0mm |
| Inner Diameter of Coils | φ470～φ510mm |
| Outer Diameter of Coils | Φ1000～φ1800mm |
| Coil Weight | ≤8T |
| (2)Pipe Specification | |
| Pipe size |
Round Pipe:ø89-219mm Square Pipe: 80x80 - 175x175mm Thickness: 1.5-6.0mm |
| Length | 6m |
| Forming Speed | 20-50 m/min |
| (3)The buyer should self-supply | |
| Total capacity | Around 850 kw |
|
Circulation Cooling Water (whole system) |
Flow:20T/h～30 T/h Pool Volume:30m3 |
|
Compressed Air (whole system) |
Flow:5m³/min Pressure: 5-7kg/㎡ |
| Cable | All cable outside of my machine, you buy after machine fix location. |
Usually we send 2-3 engineers to perform the installation and commissioning of the whole line, the buyer should buy round-trip tickets for them, provide food & accommodation as well as local transportation to the engineers, and pay each engineer $150 per day for their technical service.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
