Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Efficiency ERW High Frequency Steel Pipe Making Machine | Material: | Carbon Steel Galvanized |
|---|---|---|---|
| Welding Type: | ERW Welding | Welding Speed: | Max.80m/min |
| Control System: | PLC Control | Motor: | Siemens |
| Colour: | Up To Client | OD Diameter: | 6-32mm |
| Thickness: | 0.2 - 1.0mm | Key Word: | ERW High Frequency Steel Pipe Making Machine |
| Highlight: | High Frequency Steel Pipe Making Machine,ERW Steel Pipe Making Machine,High Efficiency Steel Pipe Making Machine |
||

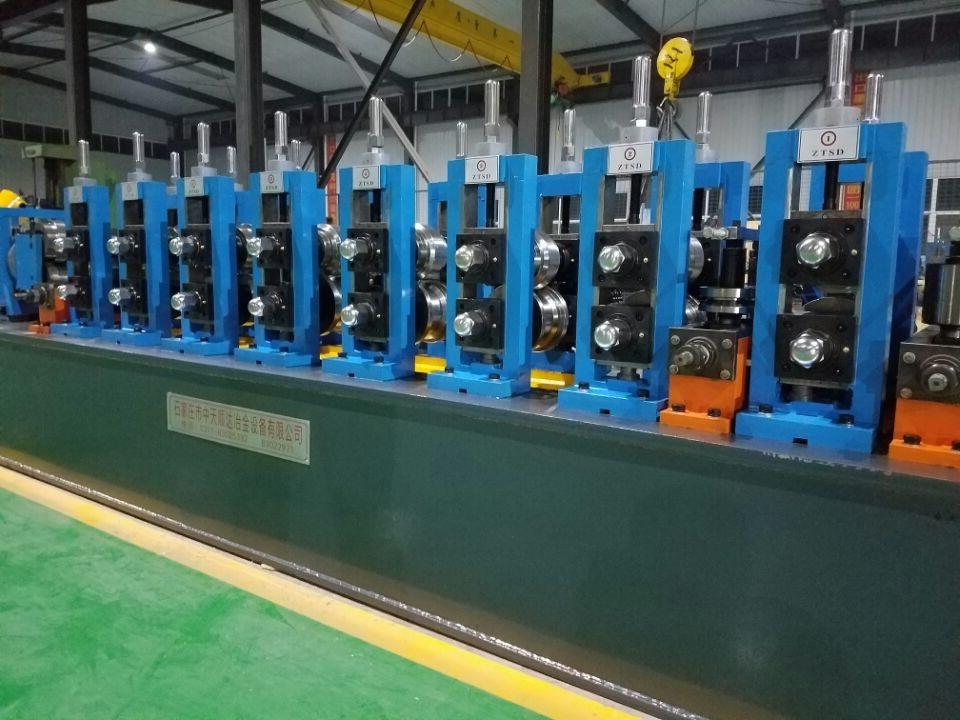

High Efficiency ERW High Frequency Steel Pipe Making Machine
PLC control High Presicion Steel Pipe Making Machine with ERW welding is mainly used for decoration, products, household appliances with stainless steel pipe and carbon steel pipe production, unit mold after drawing out of the tube, square tube, rectangular tube, can also produce oval tube, semi-circular tube, Shaped tube. Such as stainless steel staircase handrails, stainless steel doors and windows, tables and chairs.
Features of carbon steel decorative pipe machine
①, the use of CNC equipment parts processing, high precision products;
②, the machine is durable, the maintenance probability is small;
③, using Siemens motor, the Pearl River reducer and other well-known brand accessories, high performance;
④, fully automated, simple operation, continuous production, high efficiency;
⑤, tube speed faster than peers 15%, high yield;
⑥, low production costs, less material waste, tubing yield can reach more than 98%;
⑦, professional technical team to help you solve the technical problems in the process of pipe.
Technical Parameters:
| No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW in Metres) |
| 1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
| 2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
| 3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
| 4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
| 5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
| 6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
| 7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
| 10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
| 11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
| 12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
| 13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
| 14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
| 15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
| 16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
