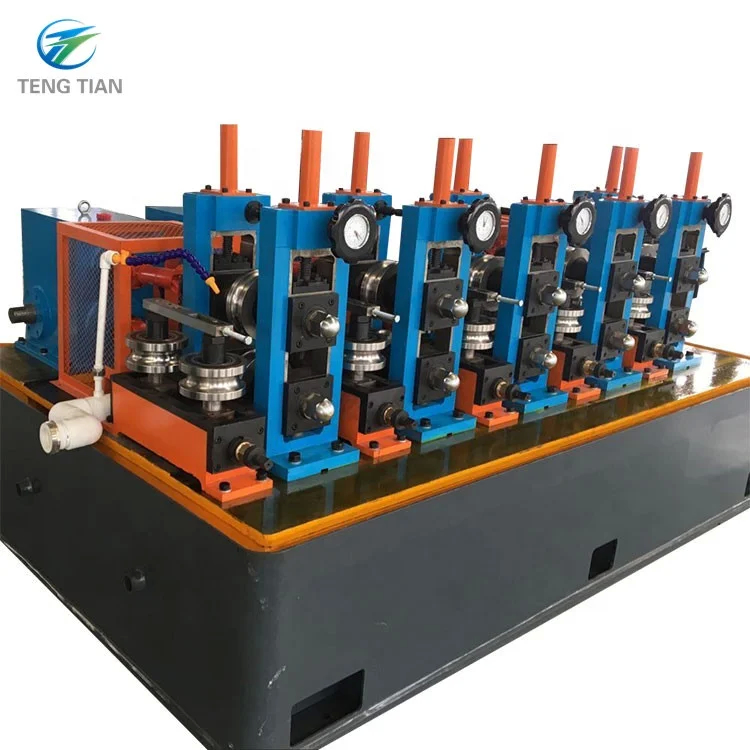

| Production Name: | MS Industrial Pipe Mill Making Machine With Continuous Production | Model: | 50A |
|---|---|---|---|
| Feature: | Directly And Stable | Max Size: | 76 Mm |
| Thickness: | 1 - 2 Mm | Length: | 6 M |
| Warranty: | One Year | Key Words: | Steel Pipe Making Machine, MS Pipe Mill |
| Highlight: | high-speed steel pipe making machine,Continuous steel pipe making machine,Continuous metal pipe making machine |
||
According to the materials and size you provided, the ZG series of precision carbon steel welded pipes are planned. The production of steel welded pipes can be applied to industrial pipes and water pipes
|
Item |
ZG50A |
| Forming type | ERW |
| standard | Q/PBDQ001-2013 |
| Pipe dia range(mm) | Φ12.7～Φ76.2 |
| Pipe thickness range(mm) | δ1.0～δ2.0 |
| Forming speed(m/min) | 0.4～3.0 |
| Main power | 380V±5%V/3 50HZ±3%HZ |

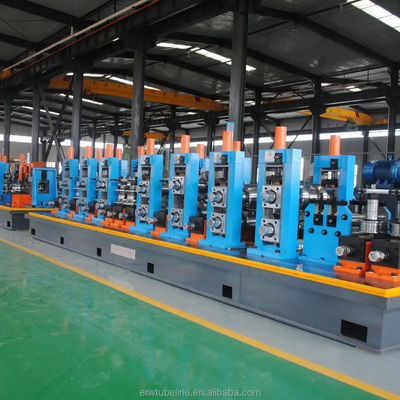

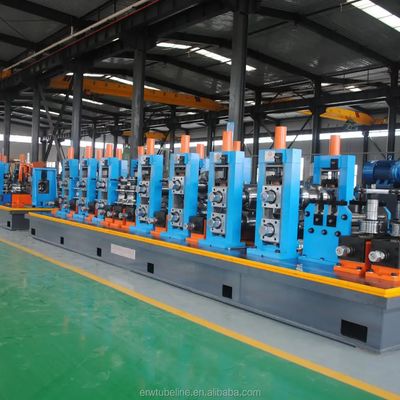

Uncoiler→leveler→guide→forming→welding→sizing→straightener→cutting→finish
