Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V/3Phase/50Hz | Control System: | PLC |
|---|---|---|---|
| Roller Stations: | 18-20 Stations | Cutting Tolerance: | ±2mm |
| Roller Material: | 45# Steel | Forming Speed: | 15-20m/min |
| Machine Size: | 120m*8m*10m | Machine Weight: | About 600 Ton |
| Highlight: | Round ms pipe making machine,Square ms pipe making machine,steel pipe making machine automated |
||

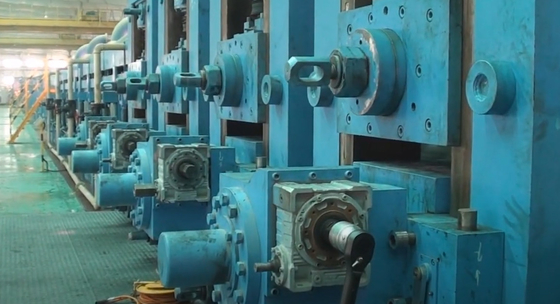

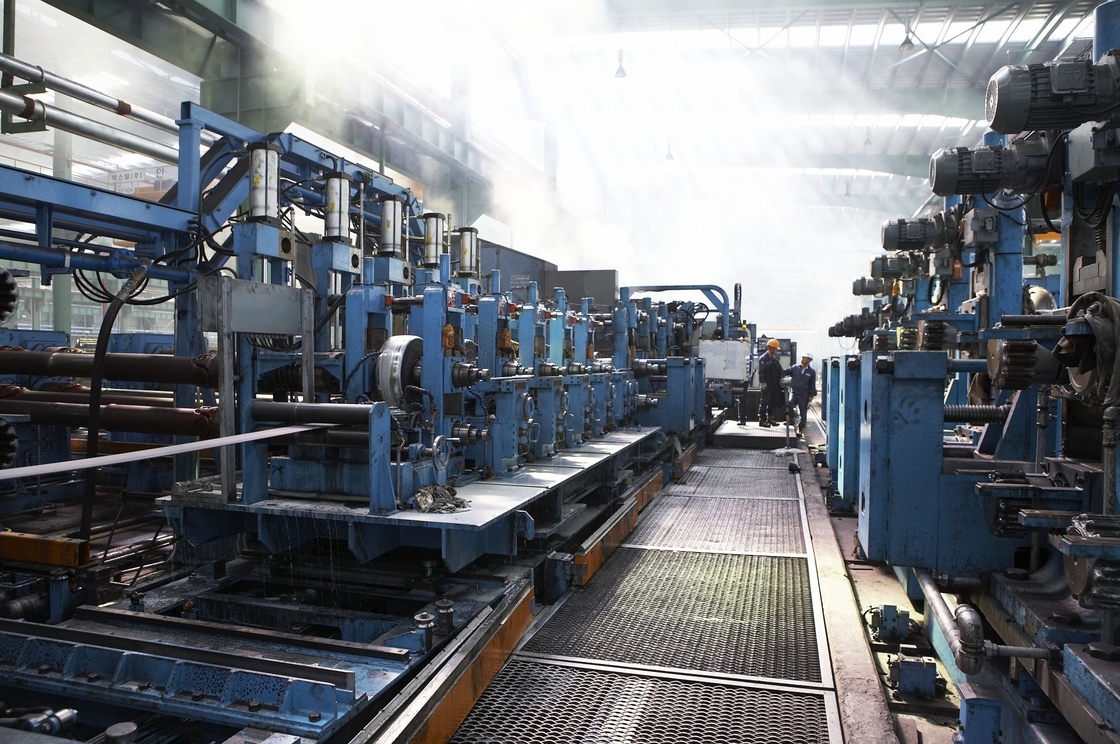

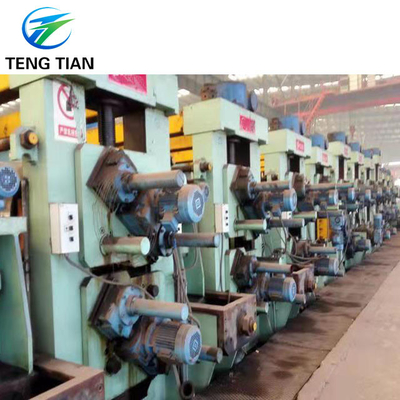

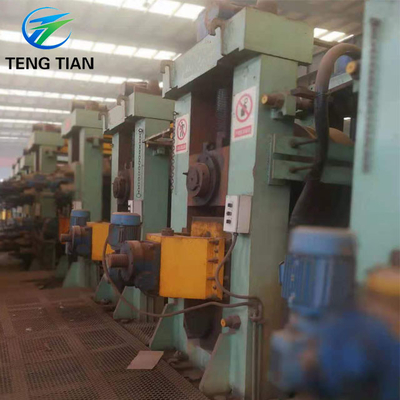

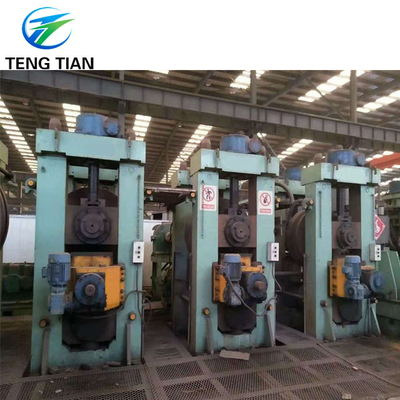

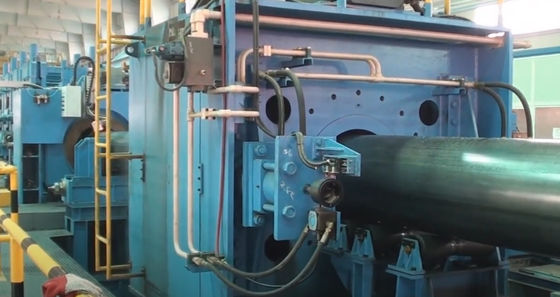

HG630x16 High frequency welded pipe production line is used to manufacture welded steel pipe of Φ325mm-Φ630mm,thickness 4.0-16.0mm, square pipe 250x250-500x500mm, thickness 4.0-16mm . After we absorbed advanced pipe making technology from all over world, our innovative designed production line and each single unit of the production line is not only economical but also practical.
| (1)Raw material: | |
| Material Quality | Q195,Q235B,Q355B,Galvanized Steel,MS,CR,HR |
| Mechanical properties | σb≤500Mpa,σs≤325MPa |
| Strip Width | 1020-2000mm |
| Strip Thickness | 4.0-16mm |
| Coil ID | Φ508-610mm |
| Coil OD | Φ1200mm-2100mm |
| Coil Weight | 25.0T |
|
|
| Pipe Size |
Round Pipe: φ325-φ630mm T:4.0-16mm Square Pipe:¨ 250x250-500x500mm T:4.0-15mm |
| Length | 4-6m |
| Application | Structure |
TENGTIAN Steel Pipe Making machine, is an ISO9001 and CE certified steel pipe making machine with excellent performance and reliable quality. It is designed for production of round steel pipe. Equipped with advanced technology.
The machine is powered by 380V/3Phase/50Hz voltage and features a cutting tolerance of ±2mm. It is made of 45# steel and has a total weight of about 400T. The shaft diameter is 30mm. With a minimum order quantity of 1, the machine can be delivered within 100 days with CIF payment terms and a supply ability of 30 SETS PER YEAR.
Our experienced technicians will ensure that your CZ Purlin Roll Forming Machine is running smoothly and efficiently. If you have any questions or need any assistance, please do not hesitate to contact us.
