HG426 Carbon Steel Pipe Manufacturing Machine High Efficient

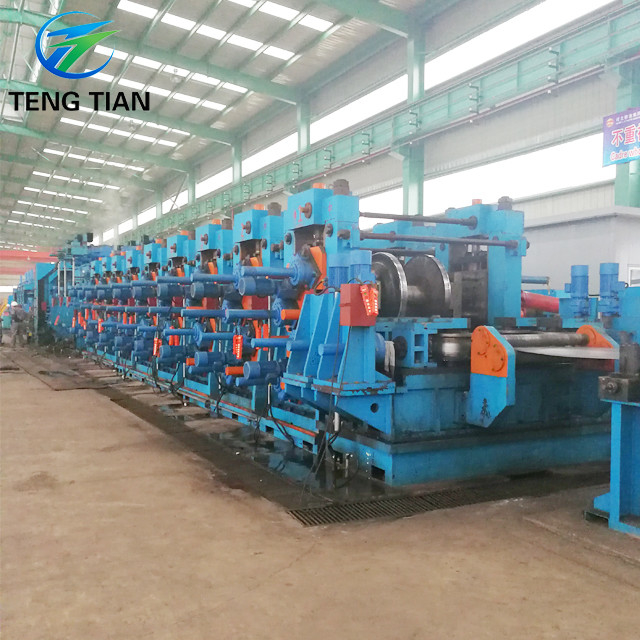

Large Image : HG426 Carbon Steel Pipe Manufacturing Machine High Efficient

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE, ISO9001
Model Number:	HG426

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	300 days
Payment Terms:	CIF
Supply Ability:	30 SETS PER YEAR

Contact Now

Detailed Product Description

Control System:	PLC	Cutting System:	Milling Saw
Voltage:	380V/3Phase/50Hz	Cutting Tolerance:	±2mm
Cutting Length:	Any Length	Keyword:	Steel Tube Making Machine
Highlight:	HG426 steel pipe manufacturing machine , Carbon steel pipe manufacturing machine , High Efficient steel pipe making machine

Product Description:

HG426x12.7 High frequency welded pipe production line is used to manufacture welded steel pipe of Φ165mm-Φ426mm,thickness 4.0-10.0mm, square pipe 130x130-330x330mm, thickness 4.0-9.5mm . After we absorbed advanced pipe making technology from all over world, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Features:

Product Name: High frequency welded pipe production line
Shaft Diameter: 150mm
Roller Stations: 18-20 Stations
Machine Weight: About 400T
Roller Material: Cr12

Technical Parameters:

(1)Raw material:
Material Quality	Q195,Q235B,Q355B,Galvanized Steel,MS,CR,HR
Mechanical properties	σb≤500Mpa,σs≤325MPa
Strip Width	515-1340mm
Strip Thickness	4.0-12.7mm
Coil ID	Φ508-610mm
Coil OD	Φ1200mm-2100mm
Coil Weight	18.0T
Finished Product Size and purpose
Pipe Size	Round Pipe: φ165-φ426 mm T:4.0-12.7mm Square Pipe:¨ 130x130-330x330mm T:4.0-12mm
Length	4-6m
Application	Structure

Support and Services:

Technical Support and Service for CZ Purlin Roll Forming Machine

We provide technical support and service for CZ Purlin Roll Forming Machine. Our experienced technical staff can help you with:

Installation and configuration of CZ Purlin Roll Forming Machine
Repair and maintenance of CZ Purlin Roll Forming Machine
Troubleshooting of any issues related to CZ Purlin Roll Forming Machine

Our technical support team is available 24/7 and is always ready to answer any questions or assist you with any issues you may have.

HG426 Carbon Steel Pipe Manufacturing Machine High Efficient 1
