| Product Name: | High Efficiency Customizable Tube Mill Machine | Coild: | Q235 |
|---|---|---|---|
| Diameter: | 219mm(max.) | Worm Gearing: | 20-50 M/min |
| Thickness: | 6mm | Length: | 6-9M |
| Weight: | 8 Tons | Cutter: | Hot Saw |
| Runout Table: | 18M | Key Word: | Customizable Tube Mill Machine |
| Highlight: | High Efficiency Tube Mill Machine,Customizable Tube Mill Machine,Low Noise Tube Mill Machine |
||

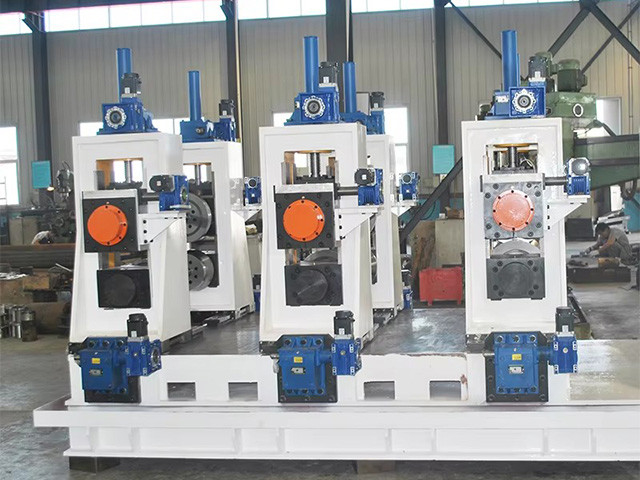

High Efficiency Customizable Tube Mill Machine
Q235 Carbon Steel Pipe Making Machine for Round Pipe Various Size
It is designed to produce welded steel pipes ,include round pipe , square pipe and rectangle pipe. Adopt roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
| (1)Material Specifications: | |
| Standard | Conforming to the YB189-64 standard |
| Material | Low carbon steel and low alloy steel, Q235 |
| Strip Width | 320-700mm |
| Strip Thickness: | 1.5-6.0mm |
| Inner Diameter of Coils | φ470～φ510mm |
| Outer Diameter of Coils | Φ1000～φ1800mm |
| Coil Weight | ≤8T |
| (2)Pipe Specification | |
| Pipe size |
Round Pipe:ø89-219mm Square Pipe: 80x80 - 175x175mm Thickness: 1.5-6.0mm |
| Length | 6m |
| Forming Speed | 20-50 m/min |
| (3)The buyer should self-supply | |
| Total capacity | Around 850 kw |
|
Circulation Cooling Water (whole system) |
Flow:20T/h～30 T/h Pool Volume:30m3 |
|
Compressed Air (whole system) |
Flow:5m³/min Pressure: 5-7kg/㎡ |
| Cable | All cable outside of my machine, you buy after machine fix location. |
Usually we send 2-3 engineers to perform the installation and commissioning of the whole line, the buyer should buy round-trip tickets for them, provide food & accommodation as well as local transportation to the engineers, and pay each engineer $150 per day for their technical service.
FAQ
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to info@sjzztsd.com
