| Product Name: | Mill Rollers Pipe And Tube Carbon Steel Tube Making Machine For Round Pipe | Material: | Low Carbon Steel , Low Alloy Steel , Etc . |
|---|---|---|---|
| Product Speed: | 100 M / Min | Forming Method: | Roller Mill |
| Channel Steel , Angle Steel , C Channel Steel: | PLC | Color: | Blue |
| Floor Area: | 60m×12m | Power Supply: | 200kw |
| Highlight: | Mill Rollers steel tube making machine,Carbon Round steel tube making machine,Mill Rollers steel pipe making machine |
||

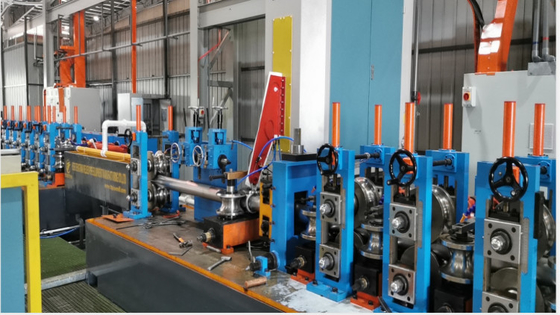

Mill Rollers Pipe and Tube Carbon Steel Tube Making Machine for Round Pipe
Steel Tube Making Machine Profile:
HG60 Steel Tube Making Machine has a reasonable design structure, touch screen man-machine interface, PLC digital program control, coding and sizing, high degree of automation, smooth process, good product quality, stable mechanical performance, high yield, labor-saving and time-saving, and overall linkage sizing High precision.Cold roll forming machine through the sequence configuration of multichannel forming mold,make the metal plate like coil,the strip with constant transerse bending,to make s apecific section profile of the plastic deformation process technology,is the special equipment to product opening cold bending steel special equipment,such as,channel steel,Angle steel,C channel steel,cap payment,high speed guardrail plate,etc.This unit has the advance technology mature,reliable equipment and craft,etc.
The Milll Tour:
Step 1 - Coils
There are carbon steels that are going to be made into pipe and tube for you
Step 2 - uncoiler
The carbon steel coil is placed on the uncoiler
Step 3 - Leveler
The coil stock is leveled
Step 4 - Mill
Then it goes through a series of rolls that form the flat steel into pipe

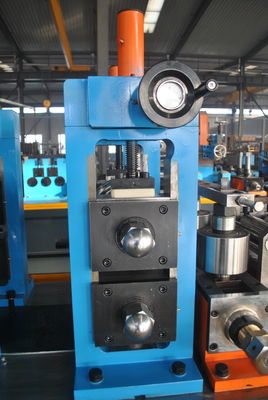

Step 5 - Mill Rollers
Rolls form this size schedule into shape
Step 6 - Welder
An Electirc Resistance Welder Finishes the pipe or tube
Step 7 - Scarfer
The seam is “scarfed” to make the pipe or tube smooth all the way around.
Step 8 - Saw
Finally, the pipe and tube is sawed to length
we can design the machine accoeding to the customer detail require.
| No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW in Metres) |
| 1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
| 2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
| 3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
| 4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
| 5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
| 6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
| 7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
| 10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
| 11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
| 12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
| 13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
| 14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
| 15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
| 16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
