| Name: | HR Carbon Steel Tube Making Machine For Round Square Pipe | Applicable Materials: | Construction Steel |
|---|---|---|---|
| Forming Method: | Roller Forming Tube Machine | Equipment Specification: | Customer Determined |
| Cutting Method: | Hydraulic Cutter | Speed: | 80 M/min |
| Warranty: | One Year | Material: | HR Steel |
| Forming Type: | Direct Forming | Work Shop: | 100 X M, H＞3m ( Crane To Ground ) |
| Highlight: | HR steel tube making machine,Round Carbon steel tube making machine,HR steel pipe making machine |
||
HR Carbon Steel Tube Making Machine for Round Square Pipe
I. Common product specifications (h×b×cxt)
| No. | Model | Pipe Size | Thickness | Speed(m/min) | Capacity(KW) | HF(KW) | Area(LxW in Metres) |
| 1 | HG20 | ø8 - ø20 mm | 0.3 - 1.5 mm | 30 - 150 | 210 | 100 | 40*12 |
| 2 | HG32 | ø10 - ø32 mm | 0.4 - 2.0 mm | 30 - 150 | 300 | 150 | 40*12 |
| 3 | HG50 | ø16 - ø50 mm | 0.7 -2.5 mm | 30 - 150 | 410 | 200 | 60*12 |
| 4 | HG60 | ø22 - ø60 mm | 0.9 - 3.0 mm | 30 - 150 | 410 | 200 | 60*12 |
| 5 | HG76 | Ø25 - ø76 mm | 1 - 4 mm | 30 - 120 | 580 | 300 | 80*16 |
| 6 | HG89 | Ø32 - ø89 mm | 1 - 4.5 mm | 30 - 100 | 660 | 300 | 100*16 |
| 7 | HG114 | Ø45 - ø114 mm | 1.5 -5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 8 | HG140 | Ø50 - ø140 mm | 1.5 - 5.5 mm | 30 - 80 | 920 | 400 | 100*16 |
| 9 | HG165 | Ø60 - ø165 mm | 2 - 6 mm | 30 - 60 | 1100 | 500 | 100*16 |
| 10 | HG219 | Ø114 - ø219mm | 3 - 8 mm | 20 - 45 | 1400 | 600 | 150*16 |
| 11 | HG273 | Ø114 - ø273mm | 4 - 12 mm | 15 - 30 | 2100 | 800 | 160*18 |
| 12 | HG325 | Ø165 - ø325 mm | 4 - 14 mm | 10 - 30 | 2500 | 1000 | 200*24 |
| 13 | HG426 | Ø165 - ø426 mm | 4 - 16 mm | 8 - 25 | 2900 | 1200 | 250*24 |
| 14 | HG508 | Ø219 - ø508 mm | 5 - 18 mm | 5 - 18 | 3400 | 1600 | 300*24 |
| 15 | HG610 | Ø355 - ø610 mm | 5 - 18 mm | 5 - 18 | 3700 | 1600 | 300*24 |
| 16 | HG760 | Ø426 - ø760 mm | 5 - 20 mm | 5 - 20 | 4300 | 1800 | 300*24 |
II. Introduction
HR Carbon Steel Tube Making Machine for Round Square Pipe has the advantages of adjustable size and high compressive strength. Widely used in automobiles, railway vehicles, building doors and Windows transportation, shelves, electrical cabinets, highway guardrail, building steel structure, containers, steel formwork and scaffolding, solar bracket shipbuilding, Bridges, transmission towers, steel sheet piles, cable bridge, agricultural machinery, furniture, storage, rail, keel steel, vegetable greenhouses, pipeline support, municipal construction and other fields.
III.Equipment composition
uncoiler : double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.
Straightener & leveler :The Straightener is main used to lead the new coil steel head feed into the leveler after uncoiler unit bring the coil into the working place. The Leveler is main used to flatten the head and trail of the strip steel and prepare for the next step shear and welding, so as to ensure the strip steel opposed flate and straight in the shear welding.
Automatic shear and welding : Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together.

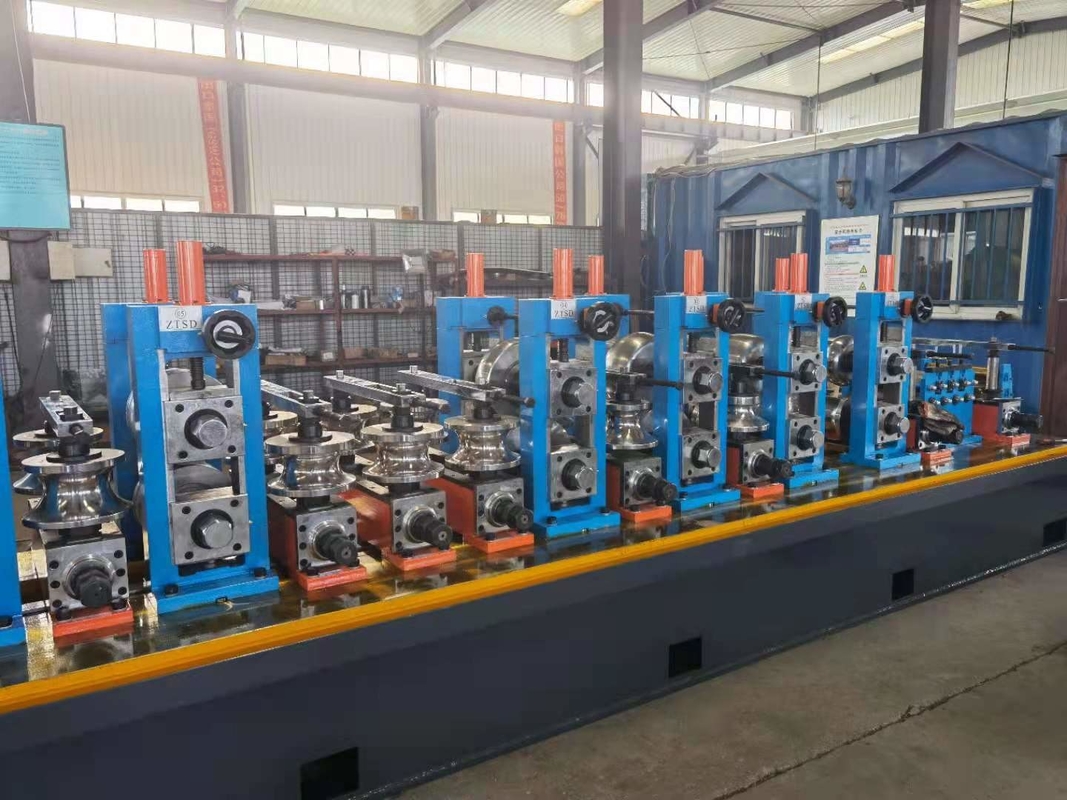

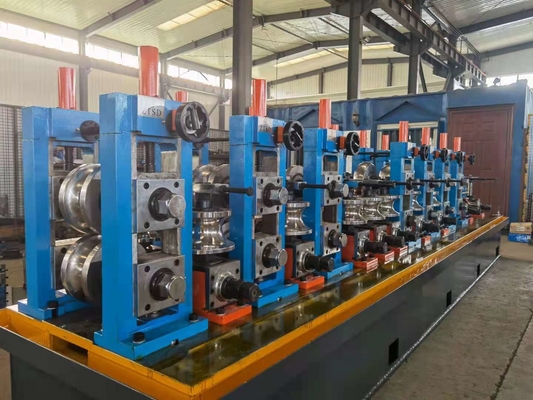

Forming and sizing part : this part cold-bends the steel strip into a set shape. The size can be adjusted by the servo motor.
Cutting machine : It is used for material cutting of continuous non-stop cold-formed steel production line. The cutting method is hydraulic cutting. The high-power servo is equipped with a high-precision reducer and imported rack and pinion transmission. The accuracy of cutting (hole distance) is ±1mm. Install imported high-precision linear guide rail and protective cover

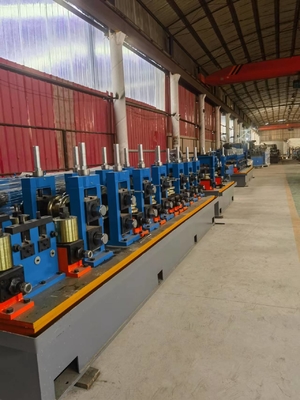

IV. Factory appearance
